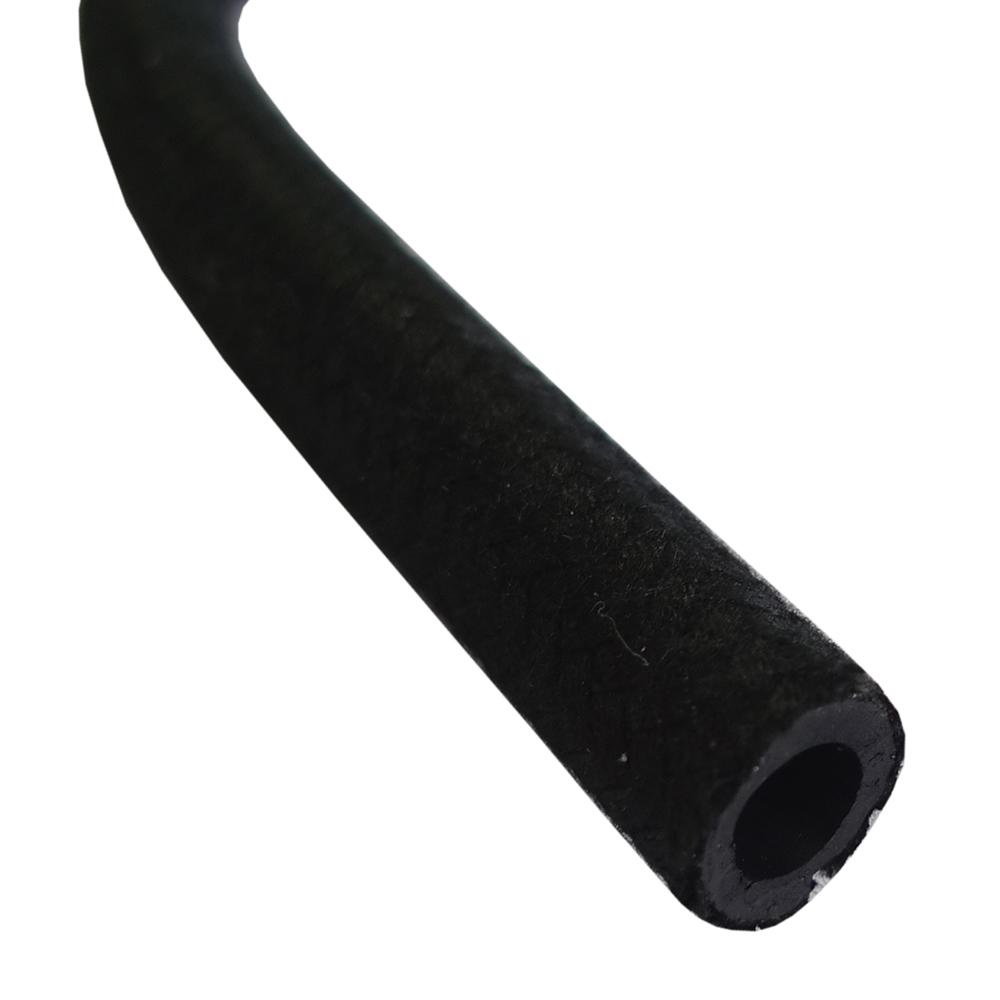

NBR Fuel Hose with Vulcanized outer yam braiding to DIN 73379 B (cloth Braided)
Cohline
Working Pressure 7 bar
Application and temp range for type 2122
Commercial fuels and fuel mixture also E10 fuel up to maximum of 50% benzol from – 30°C up to +50°C
Water Air Heating oil from -30°C up to +80°C
Diesel, fuels (gas oil) with RME addition from -30°C up to +65°C
As with all hose they are supplied to us in 20m coils.
The maximum length available in one piece is 20m.
We will always try to supply hoses in one complete length.
Please note that only complete rolls can be returned, pieces cut from the roll cannot be returned for credit, Please ensure that you select the correct hose and length.
| Code: | COFUEL-3.2MM – 1MTR 3.2MM ID X 7.0MM OD, COFUEL-3.5MM – 1MTR 3.5MM ID X 7.5MM OD, COFUEL-4.5MM – 4.5MM ID X 9.5MM OD, COFUEL-5.5MM – 1MTR 5.5MM ID X 10.5MM OD, COFUEL-6.0MM – 1MTR 6.0MM ID X 11.MM OD, COFUEL-7.5MM – 1MTR 7.5MM ID X 12.5MM OD, COFUEL-9.0MM – 1MTR 9.0MM ID X 15MM OD, COFUEL-3.5MM – 1MTR 3.5MM ID X 7.5MM OD, COFUEL-12.0MM – 1MTR 12.0MM ID X 17MM OD, COFUEL-14MM – 1MTR 14MM ID X20MM OD, COFUEL-22MM – 1MTR 22MM ID |
|---|
