Airline Rubber

Description

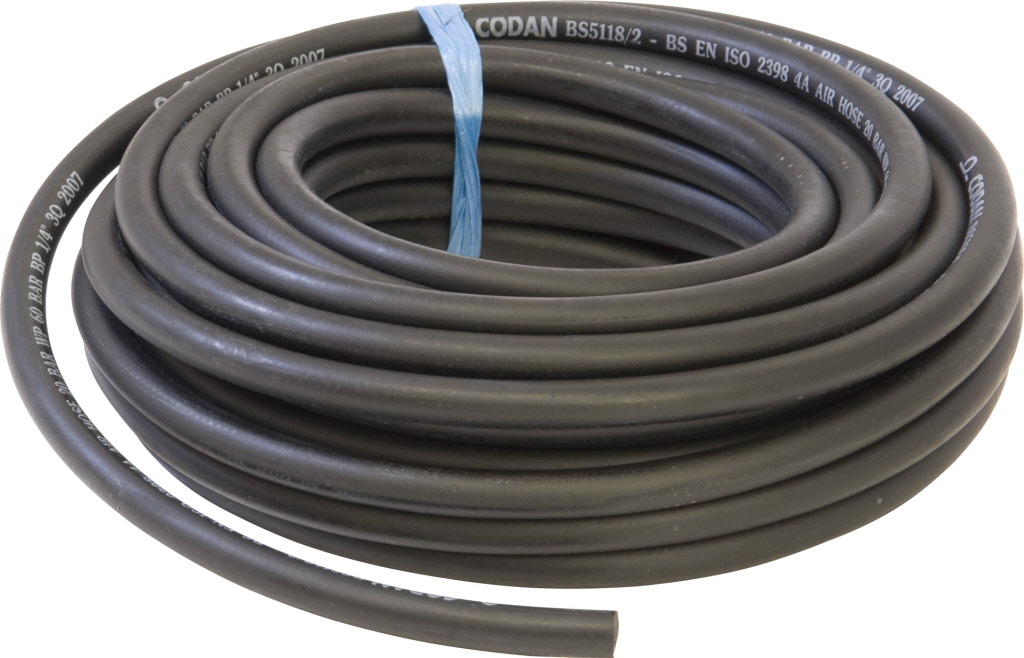

Black Airline Rubber Hose

Working Pressure: 20 bar (300PSI)

SPECIFICATION: ISO2398
APPLICATION: For general workshop use and use with compressors.
TUBE: SBR Blended
REINFORCEMENT: Polyester Yarn
COVER: EPDM / SBR Blended (smooth cover)
TEMPERATURE RANGE: -20°C to +70°C
SAFETY FACTOR: 3:1
BRANDING: W = ISO2398 4A ID 2MPA Qtr/yr (white ink)

HOSE DIMENSIONS BELOW

6MM ID X 13MM OD 60MM BEND RADIUS

8MM ID X 15MM OD 80MM BEND RADIUS

10MM ID X 17MM OD 100MM BEND RADIUS

13MM ID X 21MM OD 130MM BEND RADIUS
